Hot selling manufacturing medical device injection molding machine

Hot Sale Making Medical Equipments Injection Molding Machine Details photos:Machine details :Products:Product Application:Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it\'s widely apply to produce various terminal blocks, household appliances, consume

Featured Products

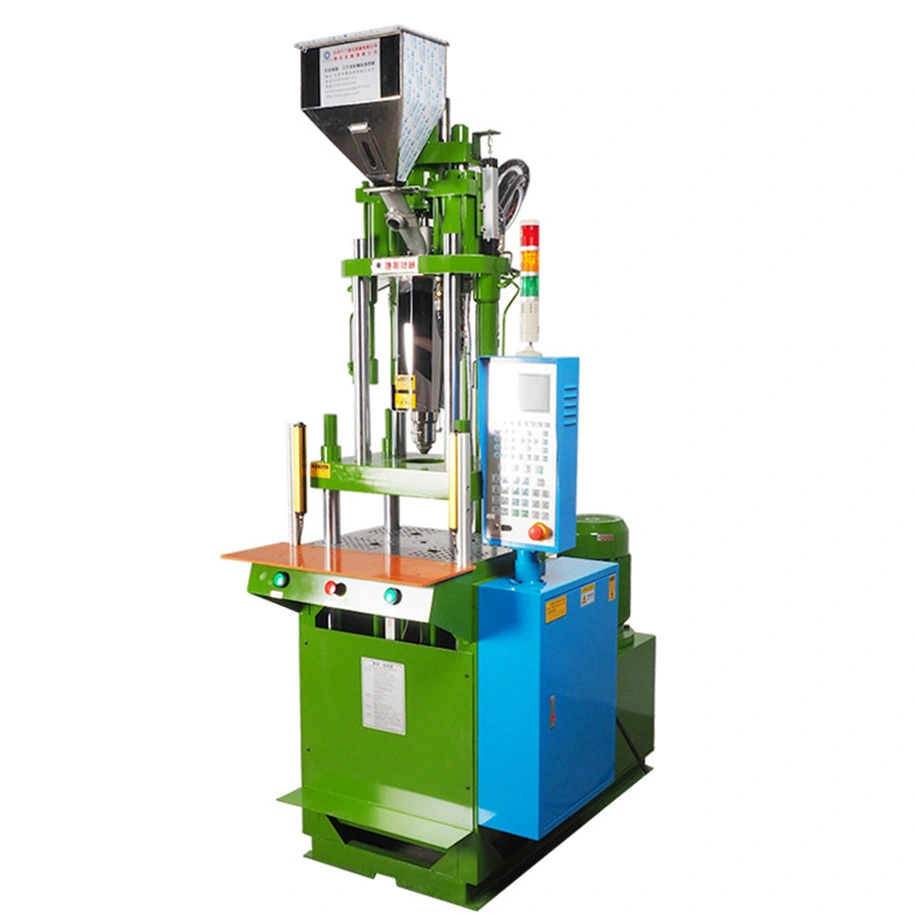

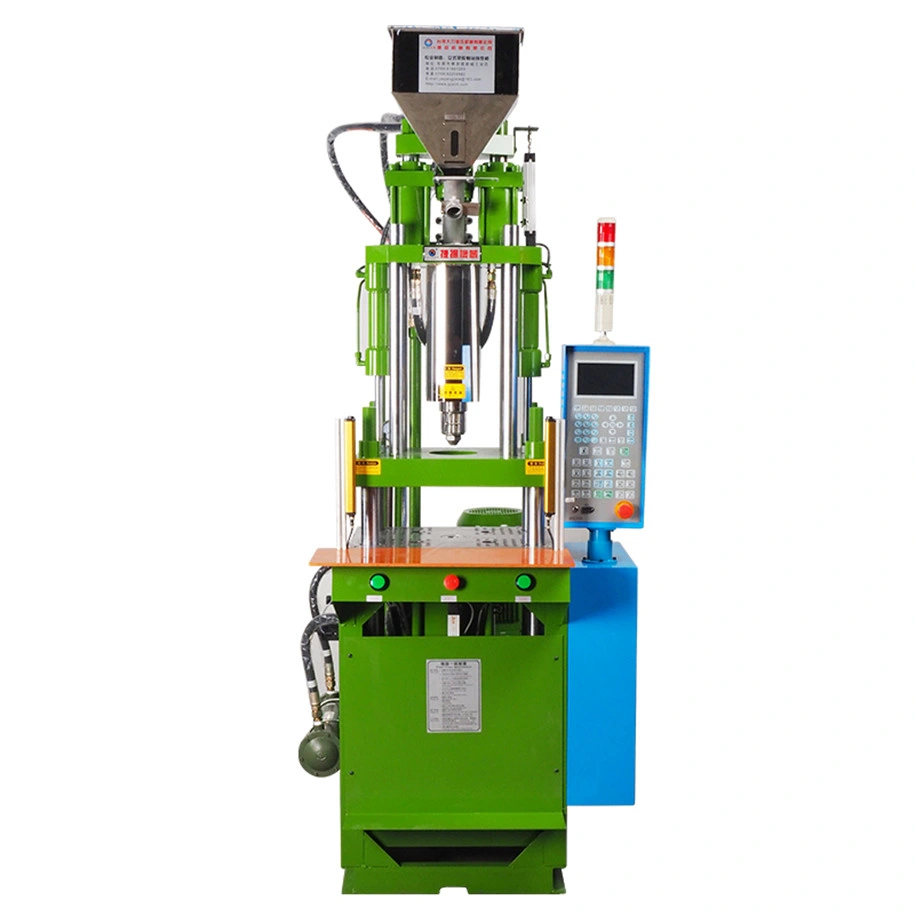

Hot Sale Making Medical Equipments Injection Molding Machine



Details photos:


Hot Sale Making Medical Equipments Injection Molding Machine


Machine details :


Hot Sale Making Medical Equipments Injection Molding Machine
Hot Sale Making Medical Equipments Injection Molding Machine
Hot Sale Making Medical Equipments Injection Molding Machine


Products:

Hot Sale Making Medical Equipments Injection Molding Machine









Product Application:

Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.


Specification:

MODELJY-350ST
  UNIT

  INJECTIONUNITScrew DiametermmΦ26Φ28Φ30
Theoretical Injection Volumecm³66.376.988.3
Injection Weightg62.672.683.4
Max.Injection PressureMpa227.4196170.8
Injection Ratecm³/s5360.372
Injection Speedmm/s75
Injection Strokemm125
Screw Speed Rotationr.p.m0-200
NO.of Temperaturecontrol 3
Nozzie Out From Platensmm≥35
CLAMPINGUNITClamping ForceKN(tf)343(35)
Clamping Strokemm200
Min.Mold Thicknessmm80/180
Max.Openingmm280/380
Distance Between Tie Bas(L*W)mm370*205
Max.Mould Size(L*W)mm350*225
Platen Size(L*W)mm490*325
Ejector Distancemm35
Ejector ForceKN(tf)17.2(1.75)
OTHERSSystem PressureMpa13.7
Oil Tank CapacityL80
Electric PowerKW(HP)4(5.5)
Heater PowerKW2.4
Machine Dimensions(L*W*H)m1.36*0.865*2.4
Machine Weighttf1.4



Main Features:

1) Straight screw ejected assembly.
2) Three-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3) Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4) Low-pressure closed die assembly can protect the safety of die.
5) Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6) Can be installed a single mold or double shuttle table.



Packaging & Shipping&Certification:


1.We will arrabge to manufacture the machine the second day after your confirmation.

2.Before shipment,we will check and test the machine carefully.

3.We will send the machine to your designated place in China.Besides,we can help you send the machine to your seaport if you need.

Hot Sale Making Medical Equipments Injection Molding Machine



Company Profile:



Hot Sale Making Medical Equipments Injection Molding Machine

Hot Sale Making Medical Equipments Injection Molding Machine

FAQ:


Q1: Are you a trading company or a manufacturer?

A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements

Q2: What's your warranty for the machine?

A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.

Q3: What's your Delivery Time?

A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.

Q4: Why choose Jieyang  Machinery Co., Ltd.?

A4: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.



You are welcome to consult!
