220ton Plastic Injection Molding Machine (Model: ZX-220)

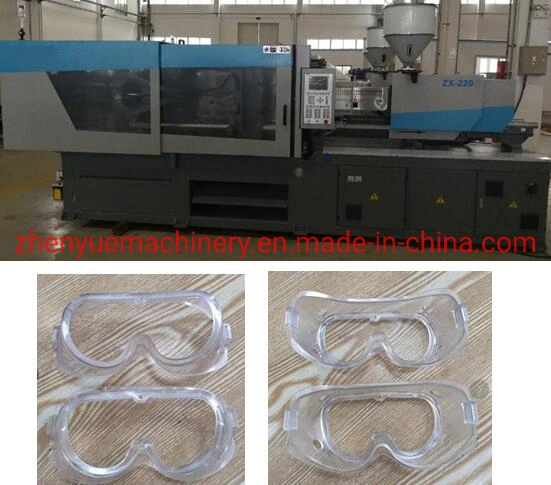

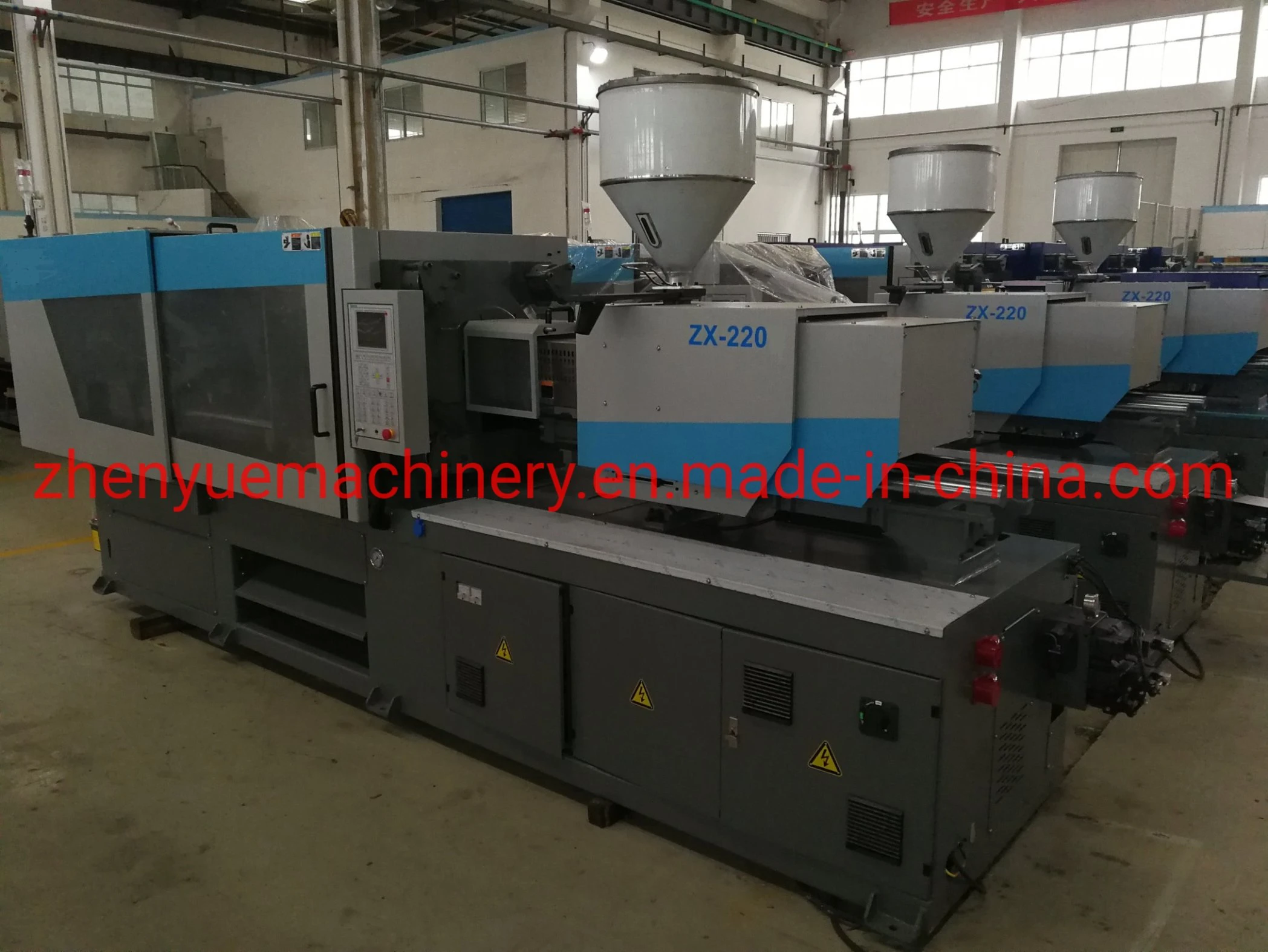

1,Photo of Plastic Injection Molding Machine
220ton Medical Injection Molding Machine for Eye Protector Goggle Safety Protective Glass Medical Eye Protector

 2, Technical Parameter of Plastic Injection Molding Machine
ZX-220Injection Unit Date ABC
Screw diametermm455055
Screw L/D ratio/222018
Theoretical shot volumecm3398491594
Shot weight(PS)g366452546
Injection rateg/s162200243
Max.screw speedrpm210

Clamping Unit
Clamping forceKN2200
Toggle strokemm520
Space bettween tie barsmm545x545
Min.mold thicknessmm180
Max.mold thicknessmm560
Hydraulic ejection strokemm160
Hydraulic ejection forceKN49

Others
Hydraulic system pressureMpa17.5
Pump motorkw24.5
Heating capacitykw12.6
Oil tank capacityL300
Machine dimensionsm5.6x1.4x2.0
Machine weightTon6.3

 3, Platen Dimension of Plastic Injection Molding Machine
220ton Medical Injection Molding Machine for Eye Protector Goggle Safety Protective Glass Medical Eye Protector

             4, Dimension of Plastic Injection Molding Machine
220ton Medical Injection Molding Machine for Eye Protector Goggle Safety Protective Glass Medical Eye Protector

                       5, Technical Characteristics of
                   Plastic Injection Molding Machine

220ton Medical Injection Molding Machine for Eye Protector Goggle Safety Protective Glass Medical Eye Protector

      6, Manufacturer of Plastic Injection Molding Machine
220ton Medical Injection Molding Machine for Eye Protector Goggle Safety Protective Glass Medical Eye Protector

                             7, Contact Information
Contact Person: Mr. Tony

Comapny: Ningbo Zhen Yue Machinery Co.,Ltd.

Address: No.39, Lane 158, Huangcheng West Road, Ningbo, China.
Zip Code: 315012


Production: plastic injection molding machine


Production:
hosuehold plastic injection molding machine
industrial plastic injection molding machine
PVC pipe fitting plastic injection molding machine
PET preform plastic injection molding machine
fork plastic injection molding machine
battery box plastic injection molding machine
sanitary plastic injection molding machine
medical plastic injection molding machine
heat preservation nail plastic injection molding machine
bobbin plastic injection molding machine
cone plastic injection molding machine
spool plastic injection molding machine
reel plastic injection molding machine
knife plastic injection molding machine
coiling plastic injection molding machine
spoon plastic injection molding machine
basin plastic injection molding machine
barrel plastic injection molding machine
bucket plastic injection molding machine
crate plastic injection molding machine


Remark:
1, the company reserves the right to revise all information (including word, photo) above.
2, due to technology development, the machine design or specification would be changed without any prior notice.

3, if you need CE machine, please tell us in advance of order. Otherwise, we provide normal machine (not CE machine). CE machine is special and expensive.
